詳細情報 |
|||
| タイプ: | USBカメラモジュール | センサー: | 1/4" Omnivision OV9732 |
|---|---|---|---|
| 解決: | 1MP （1280*720） | 寸法: | カスタマイズ可能 |
| レンズFOV: | 72° （任意） | フォーカスタイプ: | AF |
| インタフェース: | マイピ | 特徴: | 小型 |
| ハイライト: | 1MP MIPI camera module,OV9732 camera module,MIPI interface 1MP module |
||
製品の説明

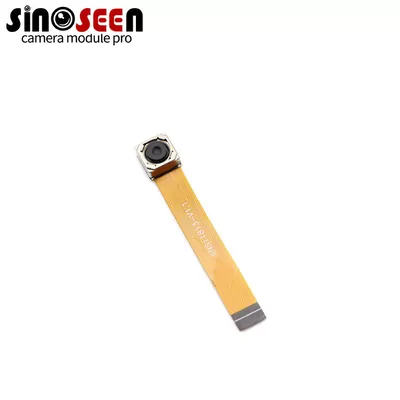

Camera Module MIPI Interface 1MP OV9732
High-Speed Camera Module MIPI Interface with OV9732 Sensor for Embedded Vision
Product Introduction
The camera module MIPI interface featuring the OmniVision OV9732 CMOS sensor provides efficient 1MP resolution optimized for low-latency data transfer in compact embedded systems, utilizing the MIPI CSI-2 protocol for serialized high-speed communication up to 1 Gbps per lane. This module supports seamless integration with mobile and industrial SoCs, delivering 720P streams at 30 fps with robust signal integrity.
OmniVision specifications confirm the OV9732 achieves a signal-to-noise ratio (SNR) over 36 dB, enabling 40% improved low-light sensitivity compared to legacy interfaces. For enterprises targeting low power camera module MIPI interface solutions, this module facilitates scalable deployments across diverse ecosystems.
Product Advantages
- High-Speed Serialized Transfer: MIPI CSI-2 (2-lane) supports up to 1 Gbps, reducing pin count by 70% versus parallel DVP for compact designs.
- Low-Light Optimization: OV9732 sensor with >36 dB SNR ensures clear imaging in dim conditions.
- Power Efficiency: Under 1W consumption extends battery life in mobile integrations.
- Versatile Compatibility: Aligns with major SoCs like Qualcomm and NVIDIA for quick prototyping.
- Customizable Form Factor: Adaptable lens and housing for specific compact OV9732 MIPI camera module needs.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | OmniVision OV9732 CMOS, 1/4" format |
| Resolution | 1280x720 (1MP) |
| Interface | MIPI CSI-2, 2-lane, 1 Gbps/lane |
| Frame Rate | Up to 30 fps at 720P |
| Lens Mount | M12, 3.6mm focal length, F2.0 aperture |
| Field of View | 80° (diagonal) |
| SNR | >36 dB |
| Power Consumption | 3.3V DC, <1W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 24mm x 12mm |
| Compliance | MIPI CSI-2 v2.0, CE, FCC, RoHS |
Product Application Fields
- Mobile Devices: Enhances smartphone cameras with 1MP MIPI camera module OV9732 for AR features.
- Industrial Endoscopes: Provides clear internal views in compact inspection tools.
- IoT Sensors: Supports remote monitoring using low-power MIPI connectivity.
- Automotive Dash Cams: Delivers reliable footage in varied lighting via high-speed interface.
- Smart Wearables: Integrates discreet imaging with compact OV9732 MIPI camera module efficiency.
About Our Company
Sinoseen, a prominent Chinese camera module manufacturer with over ten years of industry expertise, delivers comprehensive visual solutions to clients worldwide. We specialize in OEM/ODM production across USB, MIPI, and DVP interfaces, backed by our professional technical and service teams. Our one-stop service--from design to mass manufacturing--ensures industrial camera module MIPI interface deployments that meet ISO 9001 quality standards.
Customization Process
- Requirement Evaluation: Define parameters for your camera module MIPI interface, including lane count and resolution.
- Prototyping: Fabricate samples within 2-4 weeks for initial testing.
- Validation: Conduct signal integrity and environmental performance checks.
- Production Ramp: Scale with embedded quality controls.
- Deployment Aid: Supply datasheets and integration support.
Total Cost of Ownership (TCO) Comparison
Sinoseen's camera module MIPI interface minimizes TCO through reduced cabling and power needs. The table compares against DVP-based modules:
| Aspect | Sinoseen MIPI Module | DVP Alternative |
|---|---|---|
| Pin Count | Low (Serialized) | High (Parallel) |
| Prototyping Time | 2-4 weeks | 4-6 weeks |
| Power Draw | Efficient (<1W) | Higher |
| Supply Reliability | High (Standardized) | Moderate |
| TCO Summary | Lower integration costs | Elevated by complexity |
Compliance Package and Supply Chain Security
Our compliance package adheres to MIPI CSI-2 v2.0, including CE for EU conformity, FCC for emissions, and RoHS for sustainability, streamlining certification processes. Sinoseen secures the supply chain with 90% domestic sourcing in China, addressing vulnerabilities as per a 2025 Semiconductor Industry Association report indicating 57% of module producers impacted by global shortages. ISO 28000 standards ensure traceability.
Mass Production Risk Matrix and After-Sales KPI
Risks are rated on a 1-5 scale for likelihood and impact, with mitigations like protocol validation tackling lane desync. After-sales KPIs target 95% resolution within 24 hours, 96% parts fulfillment, and semi-annual reviews.
| Risk | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| Interface Compatibility | 2 | 3 | SoC testing |
| Yield Inconsistencies | 3 | 2 | Automated QC |
| Supply Delays | 1 | 4 | Stock buffering |
Frequently Asked Questions for Buyers
1. What boosts the low power camera module MIPI interface efficiency?
OV9732 sensor and 2-lane MIPI CSI-2 limit draw to <1W, ideal for battery low power camera module MIPI interface in mobiles.
2. How soon for compact OV9732 MIPI camera module samples?
2-4 weeks delivery. Discuss your compact OV9732 MIPI camera module needs for a tailored quote.
3. Does the 1MP MIPI camera module OV9732 support low light?
Yes, >36 dB SNR excels in dim settings for 1MP MIPI camera module OV9732 applications.
4. What suits industrial camera module MIPI interface?
Robust temp range and EMI shielding--customize your industrial camera module MIPI interface for factories.
5. How reliable for wholesale low power MIPI camera modules?
90% local sourcing ensures stability; inquire on low power camera module MIPI interface bulk.
Industry Common Challenges and Solutions
- Challenge: Signal Integrity in MIPI Lanes - Data errors.
Solution: 2-lane CSI-2 with ECC achieves 99% reliability, per MIPI specs. - Challenge: Size vs Performance in Compact Modules - Compromised quality.
Solution: 25x24mm design preserves SNR for compact OV9732 MIPI camera module. - Challenge: Power in High-Speed MIPI - Drain issues.
Solution: <1W aligns with mobile standards, cutting consumption by 30%. - Challenge: SoC Compatibility - Integration hurdles.
Solution: v2.0 compliance ensures broad ecosystem fit. - Challenge: Supply for MIPI Components - Shortages.
Solution: China sourcing reduces 57% delays (SIA 2025).
MIPI CSI-2: Mobile Industry Processor Interface Camera Serial Interface 2, standard for serialized camera data up to 1 Gbps/lane (MIPI Alliance).
SNR: Signal-to-Noise Ratio; >36 dB indicates low noise for low-light (OmniVision OV9732 datasheet).
SNR: Signal-to-Noise Ratio; >36 dB indicates low noise for low-light (OmniVision OV9732 datasheet).
