詳細情報 |
|||
| イメージセンサー: | 1/10" | 有効画素数: | 640*480 |
|---|---|---|---|
| ピクセルサイズ: | 2.2μm x 2.2μm | 動作温度: | -20～70℃ |
| 保管温度: | 0～50℃ | 出力タイプ: | CMOS |
| レンズビュー: | FOV80°(オプション)、F/N(オプション) | テレビの歪み: | <1% |
| ビデオ出力: | Raw Bayer10bit/8bit | 動作電圧: | AVDD:2.7~3.0V DOVDD:1.7~3.0V DVDD:1.7~1.9V |
| AEC サポート: | サポート | AEBサポート: | サポート |
| AGCサポート: | サポート | 寸法: | カスタマイズ可能 |
| メーカー型番: | SNS-11189-V1.0 | ||
| ハイライト: | GalaxyCore GC032A 0.3MP camera module,fixed focus DVP camera module,CMOS image sensor camera module |
||
製品の説明

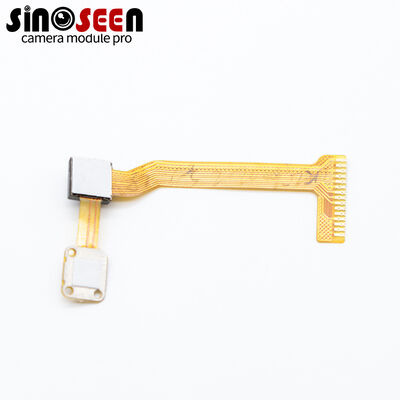

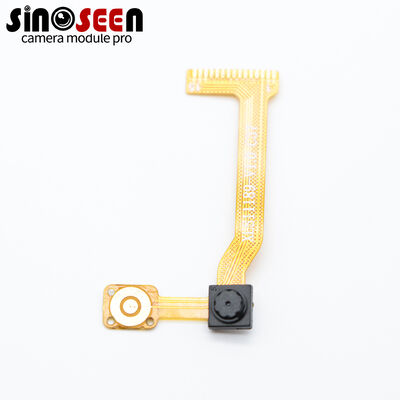

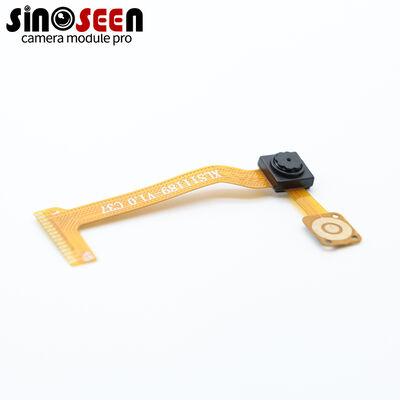

This 0.3MP fixed focus DVP camera module features the GalaxyCore GC032A CMOS image sensor with 640×480 resolution and 1/10-inch optical format. The 4-transistor pixel structure ensures high image quality with minimal noise variations.
The GC032A delivers superior image quality through its powerful on-chip design, including a 10-bit ADC and embedded image signal processor. The full integration of high-performance and low-power functions makes it ideal for mobile applications, reducing implementation complexity and extending battery life.
- On-chip ISP with smooth Auto Exposure (AE) and accurate Auto White Balance (AWB)
- Multiple data formats: Bayer RGB, RGB565, YCbCr 4:2:2
- Two-wire serial interface for host control
- DVP and SPI interface compatibility
- Low power consumption for extended battery life
| Module No | SNS-11189-V1.0 |
|---|---|
| Pixel Size | 2.2μm × 2.2μm |
| Effective Pixels | 640×480 |
| Video Output | Raw Bayer 10bit/8bit |
| Image Sensor | 1/10" |
| Sensor Type | GalaxyCore GC032A |
| Lens View | FOV80° (optional), F/N (optional) |
| TV Distortion | <1% |
| Operating Voltage | AVDD: 2.7~3.0V, DOVDD: 1.7~3.0V, DVDD: 1.7~1.9V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | 0°C to 50°C |
| Dimensions | Customizable |
- Cellular Phone Cameras
- Notebook and Desktop PC Cameras
- PDAs and Mobile Devices
- Toys and Consumer Electronics
- Digital Still Cameras and Camcorders
- Video Telephony and Conferencing Equipment
- Security Systems
- Industrial and Environmental Systems
Established in March 2009, Shenzhen Sinoseen Technology Co., Ltd has been dedicated to providing customers with comprehensive OEM/ODM customized CMOS image processing solutions. Our services span from design and development to manufacturing and after-sales support.
We offer competitive pricing and quality across our product range, including USB camera modules, mobile phone camera modules, notebook camera modules, security cameras, car cameras, and smart home camera products. We provide optimal solutions for any camera module requirement.
We tailor camera solutions based on your specific application requirements, considering product structure size, image definition, frame rate, lens angle, lighting conditions, and functional targets. Contact our customer service with your application details and requirements for a customized solution.
