詳細情報 |
|||
| タイプ: | カメラ モジュール | センサー: | 1/3" |
|---|---|---|---|
| 解決: | H1928*V1088 | 寸法: | （カスタマイズ可能） |
| レンズFOV: | 180°（オプション） | フォーカスタイプ: | フォーカスを修正しました |
| インタフェース: | マイピ | 特徴: | 変速シャッター |
| ハイライト: | 2MP MIPI camera module,1080P HD camera module,30 FPS camera module |
||
製品の説明

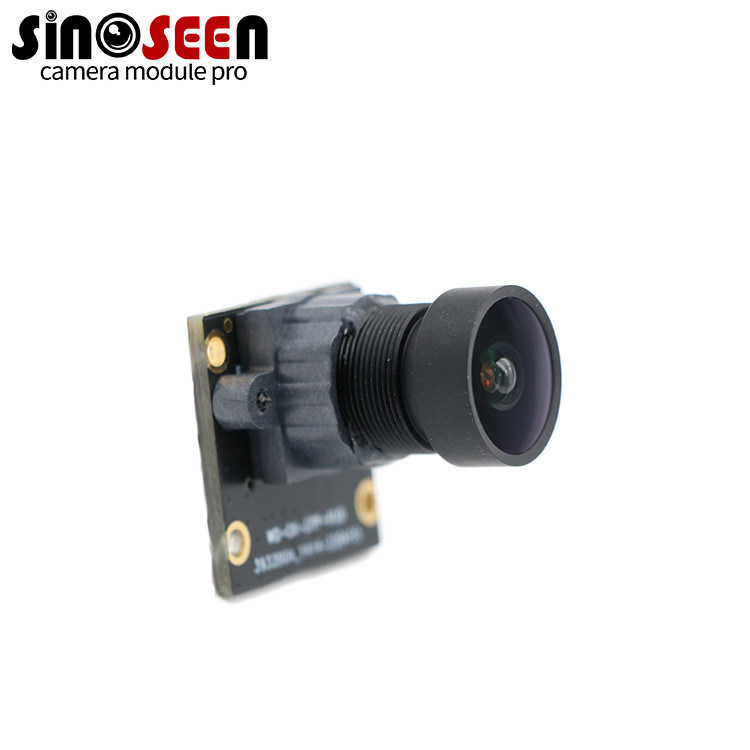

2MP MIPI Camera Module With Full HD 1080P Video Recording At 30 Frames Per Second
Product Description
The OV2311 2MP MIPI camera module is designed for high-definition imaging in AI vision, robotics, and embedded computing. It supports 1080P video recording at 30fps, ensuring sharp, low-noise images for both dynamic and static scenes.
With its MIPI CSI-2 interface, the module integrates seamlessly with Raspberry Pi, Jetson Nano, and other SBC platforms. The M12 lens mount allows flexible customization of FOV, making it suitable for close-range inspection or wide-angle monitoring.
This module provides adjustable image parameters such as exposure, brightness, contrast, and white balance. Combined with low power consumption and stable performance, the OV2311 camera module is ideal for developers building AI vision, face detection, or IoT camera systems.
Highlights
- 2MP CMOS sensor (OV2311) with Full HD 1080P output
- 30fps frame rate, low noise, high clarity
- Plug-and-play MIPI CSI-2 interface
- Adjustable exposure, brightness, and white balance
- M12 lens mount for flexible customization
Specification
| Sensor | 1/3" |
|---|---|
| Most effective pixels | H1928*V1088 |
| Pixel Size | 2.7μm x 2.7μm |
| Compression format | MJPG / YUY2 |
| Resolution | see above |
| Frame rate | see above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TdB |
| Dynamic range | TdB |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm FOV:D180° H180°V180°F/N(2.0) Thread Size: M12*P0.5 |
| Audio frequency | Support |
| microphone | Built-in |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Not Supported |
| Storage temperature | -20～80℃ |
| Operating temperature | 0～60℃ |
| USB cable length | Default |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
- 0.3MP
Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
Global shutter: OV7251 (1/7.5",B/W)
High frame rate: 200FPS SC031GS(1/6",B/W)
Big size with high frame rate: OV7725(1/4",60FPS),OV7740(1/5",60FPS) - 1MP
Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope: OV9734 GC1009 HM1091
Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P) - 2MP
Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W) - 5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3") - 8MP
800W (15FPS): IMX219(1/4")S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8") - 13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M) - USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268 - H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
