High resolution fixed focus dual lens USB camera module 640x480 720P 1080P CMOS image sensor with MJPG YUY2 output for industrial and commercial imaging
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Sinoseen |
| 証明: | RoHS |
| モデル番号: | XLS121879-V1 について0 |
お支払配送条件:
| 最小注文数量: | 5 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンボックスのトレイ+抗静止バッグ |
| 受渡し時間: | 2-3週 |
| 支払条件: | T/T |
| 供給の能力: | 500000ピース/月 |
|
詳細情報 |
|||
| 安定した温度: | 0°C〜50°C | 画像解像度: | 640*480 |
|---|---|---|---|
| ビデオ捕獲の決断: | 720P | ターゲットサイズ: | 半分のもの6 |
| VCM: | Na | 現在: | 150mA (最大) 90mA (作業) 1mA (待機) |
| 最大ピクセルレート: | 28Mp/s | USBコネクタ: | タイプc |
| レンズタイプ: | フォーカスを修正しました | 最高の有効なピクセル: | 1920(H)X1080(V) |
| 電源: | USBバス力 | 出力形式: | MJPG/YUY2 |
| 入力電圧: | 3-3.6Vまたは 3.6-16V | GPU: | マリ-T860 |
| 出力形式: | MJPG/YUY2 | ||
| ハイライト: | dual lens USB camera module,fixed focus CMOS image sensor,industrial imaging camera module |
||
製品の説明

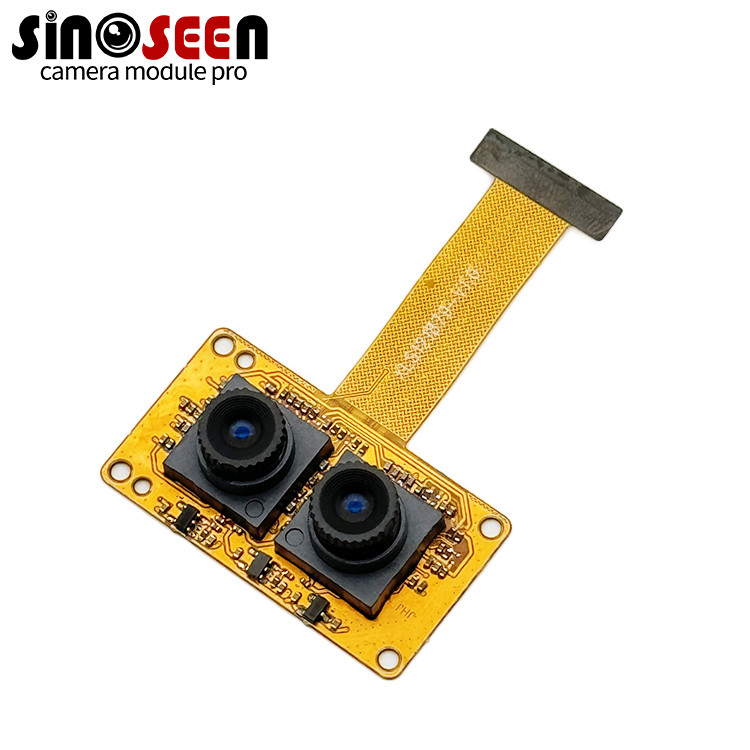

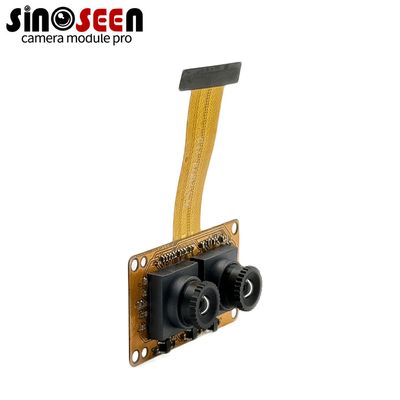

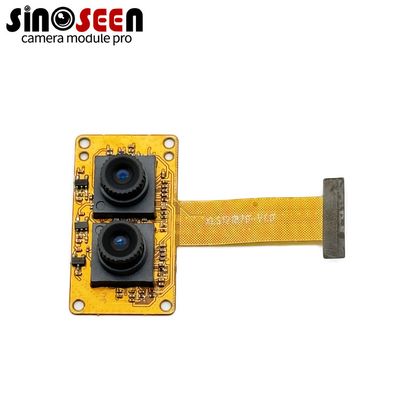

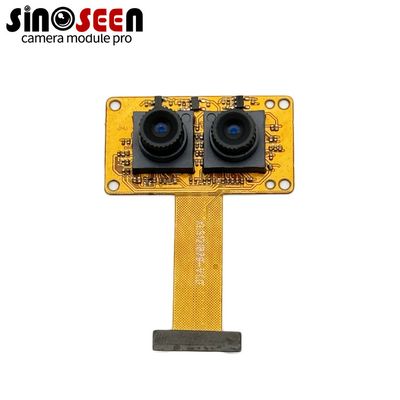

High Resolution Fixed Focus Dual Lens USB Camera Module
640x480 720P 1080P CMOS Image Sensor with MJPG YUY2 Output
The Sinoseen Fixed Focus Dual Lens Camera Module delivers exceptional image quality with 2.07 megapixels and 1080p full HD resolution. This advanced imaging solution is designed for applications requiring precision and reliability.
Key Features
- High resolution: 640×480 to 720p capability
- Maximum frame rate of 120 fps for smooth imaging
- Full pixel scanning for complete image capture
- Wide dynamic range (WDR) with multiple exposure capabilities
- Digital overlap WDR technology
- Multiple read modes for flexible operation
- 10-bit / 12-bit AD converter for superior image processing
- Flexible gain control with high and low gain modes
- Variable shutter speeds for precise control
- USB bus powered for convenient operation
- Supports MJPG/YUY2 output formats
Applications
Ideal for industrial inspection, machine vision, medical imaging, and other applications requiring high-speed imaging with wide dynamic range capabilities.
Enhance your imaging solution with Sinoseen's high-performance CMOS image sensor to perfectly capture every detail in full HD. Choose a Sinoseen CMOS module to bring unmatched performance to your next project.
