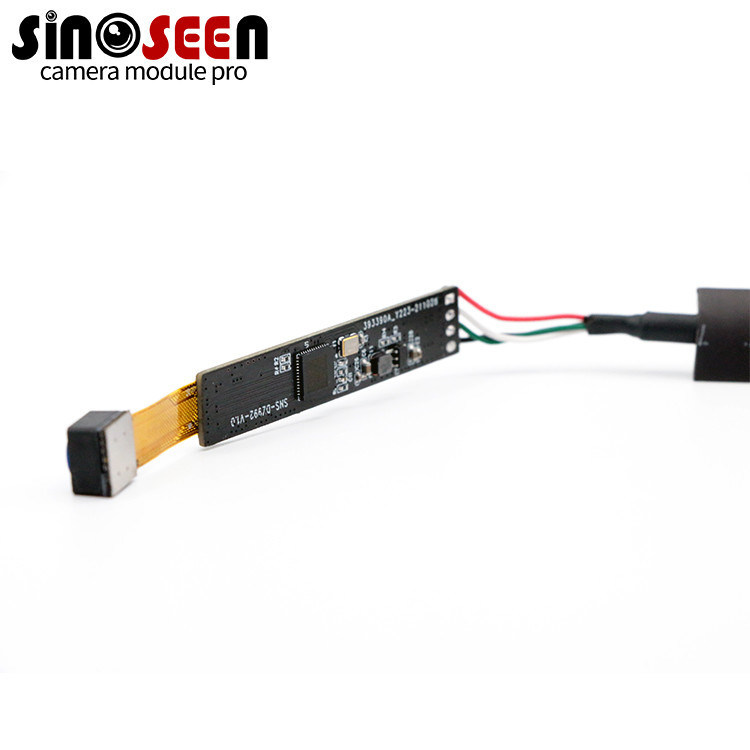

15fps 8MP USB2.0 Camera Module with Sony IMX179 Sensor | Low Power HD Imaging for Industrial and Embedded Systems
商品の詳細:
| 起源の場所: | 中国深Shenzhen |
| ブランド名: | Sinoseen |
| 証明: | RoHS |
| モデル番号: | SNS-8MP-IMX179-bbx |
お支払配送条件:
| 最小注文数量: | 200 |
|---|---|
| 価格: | 10-100USD、negotiable |
| パッケージの詳細: | カートンボックスのトレイ+抗静止バッグ |
| 受渡し時間: | 2〜3週間 |
| 支払条件: | T/T |
| 供給の能力: | 500000ピース/月 |
|
詳細情報 |
|||
| タイプ: | 8MPカメラモジュール | センサー: | 1/3.2" IMX179 |
|---|---|---|---|
| 解決: | 8MP3264 （H） X 2448 （V） | 寸法: | （カスタマイズ可能） |
| レンズFOV: | 100° （任意） | フォーカスタイプ: | フォーカスを修正しました |
| インタフェース: | USB2.0 | 特徴: | 4k |
| カスタマイズ: | サポート | ||
| ハイライト: | 8MP USB camera module with Sony IMX179,low power USB2.0 camera module,industrial HD USB camera module |
||
製品の説明
15fps 8MP USB2.0 Camera Module with Sony IMX179 Sensor | Low Power HD Imaging for Industrial and Embedded Systems
Product Description
The Sinoseen 8MP USB2.0 camera module, powered by the Sony IMX179 sensor, provides high-definition imaging at 3264*2448 resolution and 15fps frame rate. It delivers smooth, detailed, and stable video output through the USB2.0 interface, ensuring easy plug-and-play integration with a wide range of devices.
Designed for low power consumption and high sensitivity, the module performs reliably even in low-light environments, making it ideal for applications such as industrial inspection, HD monitoring, and embedded vision systems. Its 1/3.2-inch sensor and fixed focus lens deliver excellent clarity with minimal distortion.
The camera supports MJPG and YUY2 compression formats, providing flexibility for video streaming and image capture. Engineers can easily adjust key imaging parameters, including brightness, contrast, saturation, and exposure, to suit different environments. Compatibility with Windows, Linux, macOS, and Android (UVC) ensures seamless deployment across multiple platforms.
Compact and customizable, this 8MP IMX179 camera module is an efficient solution for industrial devices, tablets, smart terminals, and embedded systems requiring stable, high-quality image performance.
Highlights
- 8MP Sony IMX179 sensor for 3264*2448 high-resolution imaging
- 15fps frame rate with smooth USB2.0 data transmission
- Low power consumption and high sensitivity for better low-light performance
- Supports MJPG / YUY2 output formats and image parameter adjustment
Specification
| Model No | SNS-8MP-IMX179-bbx |
|---|---|
| Sensor | 1/3.2'' IMX179 |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3264(H) x 2448(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | MJPG / YUY2 |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 60dB |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/3 inch FOV: 95° (Optional) Thread Size: M12*P0.5 |
| Audio frequency | Support |
| Microphone | Built-in |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Not Supported |
| Dimension | 90MM x 15MM (customizable) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
