• 5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

商品の詳細:

起源の場所: 中国
ブランド名: Sinoseen
証明: RoHS
モデル番号: SNS-GM1133-V10

お支払配送条件:

最小注文数量: 5
価格: 10-100USD、negotiable
パッケージの詳細: カートンボックスのトレイ+抗静止バッグ
受渡し時間: 2-3週
支払条件: T/T
供給の能力: 500000ピース/月
ベストプライス 連絡先

詳細情報

センサータイプ: CMOS モジュールサイズ: 2つの層 38mmX38mm
音声入力: チャンネルオーディオ MIC 入力 標準インターフェイス: USB2.0高速
ピクセルサイズ: 1.4µm x1.4µm コード化された形式: H.265/H.264
消費電力: 140mAについて 物体距離: 6CM-200CM
運転方法: 運転自由 F数: 2.2
動作電流: 610mA (VGA) 最高のイメージの円: 4.8mm
アートワーク: 8層設計 保証: 10年
互換性: Windows、Mac、Linux
ハイライト:

5MP USB camera module for machine vision

,

VB1940 CMOS camera module with USB2.0

,

high-resolution USB camera module for imaging

製品の説明

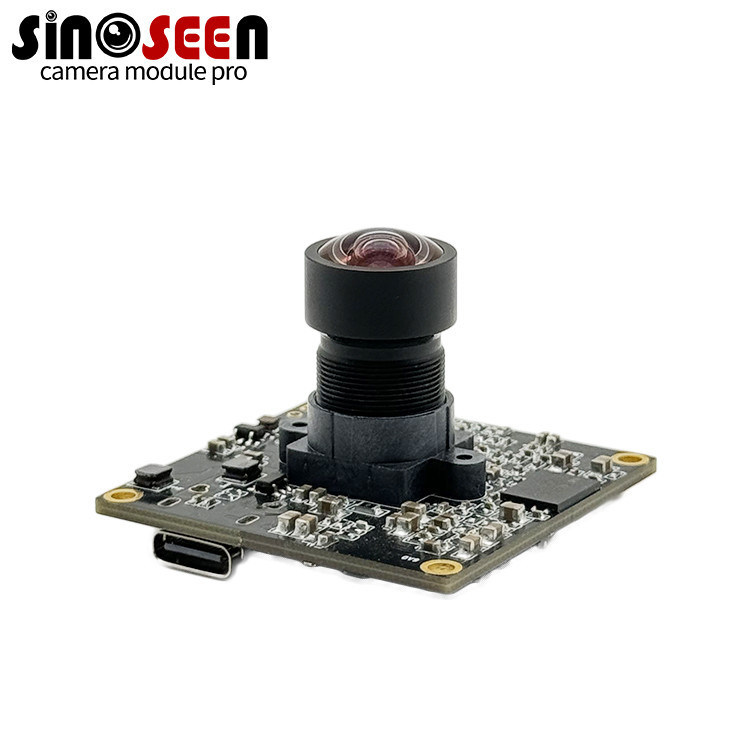

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
The Sinoseen 5MP USB2.0 CMOS camera module is designed for developers and system integrators who demand crisp image quality and stable performance. Powered by the VB1940 1/2.8-inch CMOS sensor, it captures 2592 *1944 resolution images with accurate color and superior low-light sensitivity, ideal for professional imaging solutions.
With plug-and-play USB2.0 connectivity, it ensures smooth installation and stable transmission up to 480MB/s. The module supports MJPG and YUV output, and is compatible with Windows, Mac, Linux, and Android platforms. Its robust design makes it suitable for AI vision, industrial inspection, surveillance, and video conferencing applications.
Key Features
  • 5MP VB1940 CMOS sensor for clear, sharp images
  • USB2.0 high-speed plug-and-play connection
  • Supports MJPG / YUV formats
  • Accurate color and excellent low-light imaging
  • Cross-platform compatibility: Windows, Linux, Mac, Android
  • Ideal for AI vision, industrial automation, and video systems
Technical Specifications
Signal SNS-GM1133-V1.0 Remarks
Image Sensor Size 1/2.8inch
Effective Pixels 2592H*1944V
Pixel size 2.0 um*2.0 um
Optical distortion <0.45%
Image sensor Data output Raw Bayer 10bits
Video output MPJG/YUV
Maximum Frame Rates 2592*1944 30 FPS
1920*1080 30 FPS
1600*1200 30 FPS
MJPG
Digital interface Type-c USB2.0 1.5m cable
Transfer rates 480MB/S
Power requirements 5V±5%
Storage temperature -20℃ to 70℃
Operating temperature -10℃ to 60℃
OS Support Windows XP/Vista/7/8.1/10/Mac/Android/Linux 2.6.2 (include UVC)
Default lens M12*P0.5 LENS
Lens Construction 3G2P+650IR
F/NO aperture 3.0±5%
EFL effective focal length 4.18 mm±5%
FOV angle 82°±3°
Focus method Fixed focus
Shooting distance 60cm-∞
5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision 0
