詳細情報 |
|||
センサータイプ: | CMOS | モジュールサイズ: | 2つの層 38mmX38mm |
---|---|---|---|
音声入力: | チャンネルオーディオ MIC 入力 | 標準インターフェイス: | USB2.0高速 |
ピクセルサイズ: | 1.4µm x1.4µm | コード化された形式: | H.265/H.264 |
消費電力: | 140mAについて | 物体距離: | 6CM-200CM |
運転方法: | 運転自由 | F数: | 2.2 |
動作電流: | 610mA (VGA) | 最高のイメージの円: | 4.8mm |
アートワーク: | 8層設計 | 保証: | 10年 |
互換性: | Windows、Mac、Linux | ||
ハイライト: | 5MP USB camera module,VB1940 CMOS sensor camera,machine vision USB2.0 camera |
製品の説明

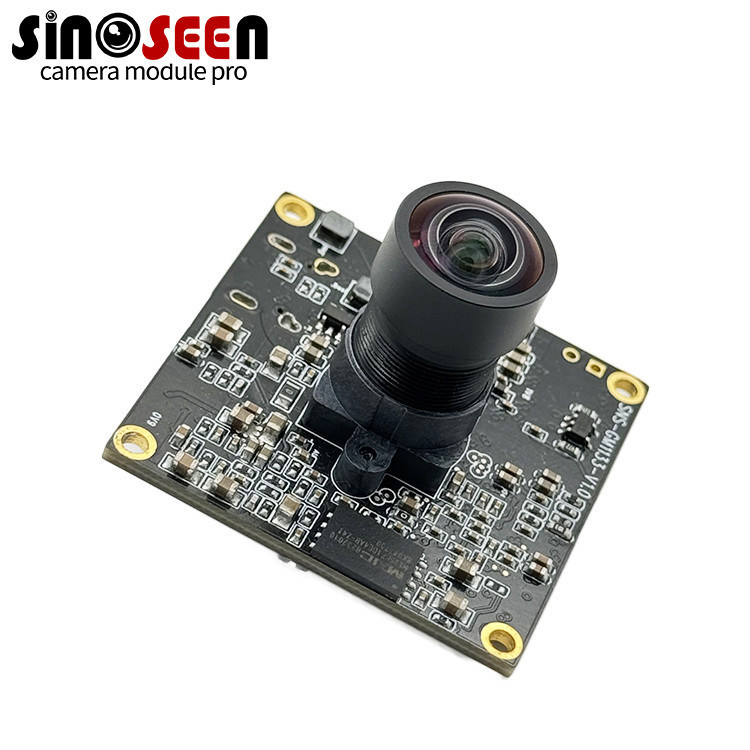

5MP VB1940 CMOS Camera Module
1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Product Overview
The Sinoseen GM1133 camera module features an advanced 1/2.8" VB1940 CMOS image sensor, delivering sharp 5MP resolution (2592 * 1944) at up to 30 frames per second. With its high-speed USB2.0 interface, this plug-and-play module ensures smooth data transmission up to 480MB/s for seamless integration across various applications.
Key Features
- 1/2.8" VB1940 CMOS image sensor with 5MP resolution (2592 * 1944)
- USB2.0 high-speed interface for plug-and-play operation
- Supports MJPG and YUV video output formats
- Excellent low-light performance and color accuracy
- Compact design for easy system integration
- Compatible with Windows, Linux, Mac, and Android systems
Technical Specifications
Parameter | Specification | Remarks |
---|---|---|
Image Sensor Size | 1/2.8 inch | |
Effective Pixels | 2592H * 1944V | |
Pixel Size | 2.0 μm * 2.0 μm | |
Optical Distortion | <0.45% | |
Image Sensor Data Output | Raw Bayer 10bits | |
Video Output | MJPG/YUV | |
Maximum Frame Rates | 2592 * 1944 @30 FPS 1920 * 1080 @30 FPS 1600 * 1200 @30 FPS |
MJPG |
Digital Interface | Type-C USB2.0 | 1.5m cable |
Transfer Rates | 480MB/s | |
Power Requirements | 5V ±5% | |
Storage Temperature | -20℃ to 70℃ | |
Operating Temperature | -10℃ to 60℃ | |
Supported OS | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC compliant) | |
Lens View | M12 * P0.5 | |
Lens Construction | 3G2P + 650IR | |
F/NO Aperture | 3.0 ±5% | |
Effective Focal Length | 4.18 mm ±5% | |
Field of View | 82° ±3° | |
Focus Type | Fixed focus | |
Shooting Distance | 60cm - ∞ |
Applications
Ideal for video conferencing, industrial inspection, surveillance systems, and educational applications. The module's stable performance and customizable image settings make it perfect for developers and engineers requiring high-quality imaging solutions.
