詳細情報 |
|||
| タイプ：: | MIPIカメラモジュール | センサー: | S5K3P3 16MP CMOS |
|---|---|---|---|
| 解決: | 4632×3480 | 寸法: | （32mmx32mmと互換性があります） |
| ハイライト: | 16MP MIPI camera module,smart home camera module,drone MIPI camera module |
||
製品の説明

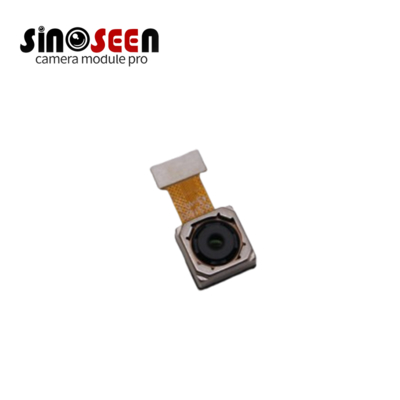

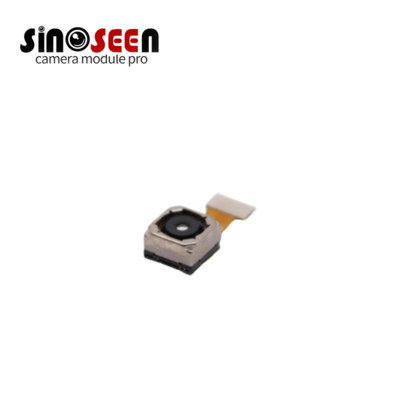

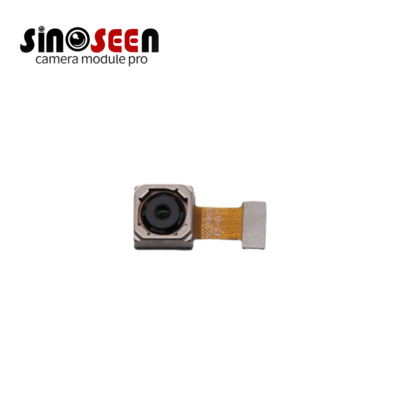

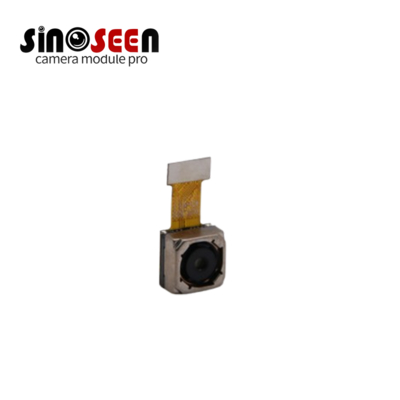

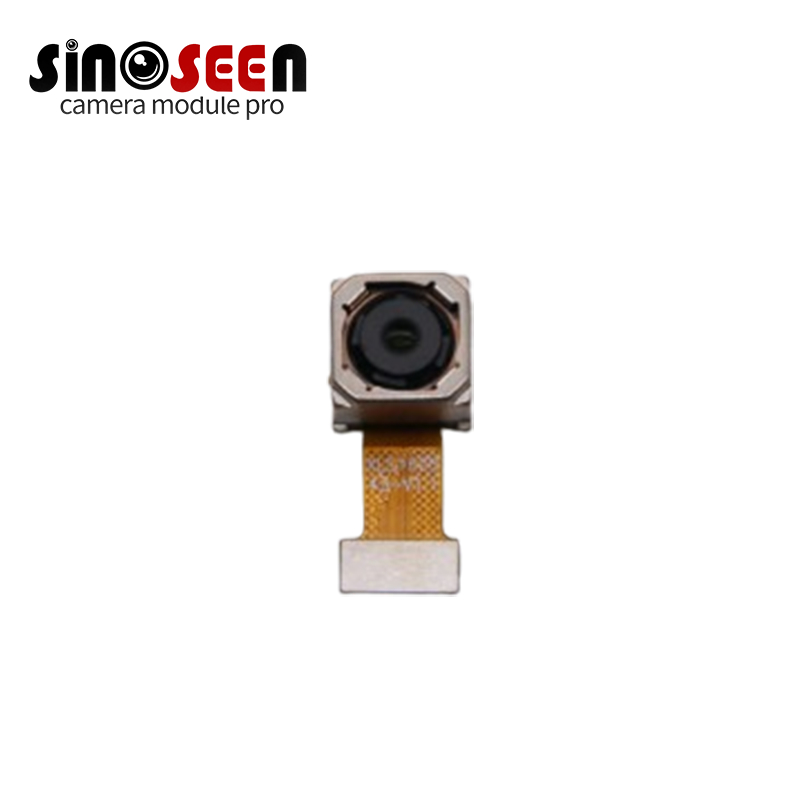

S5K3P3SX 16MP MIPI Camera Module
High-performance 16MP CMOS camera module designed for video and image capture in smart home, drone, and dashcam applications.
Key Specifications
| Type | MIPI Camera Module |
|---|---|
| Sensor | S5K3P3 16MP CMOS |
| Resolution | 4632×3480 |
| Dimensions | Compatible with 32mm×32mm |
Product Description
The S5K3P3SX is a 16MP CMOS sensor that delivers sharp, vibrant images for various applications. Featuring smooth 30FPS full-resolution video and FHD 60FPS playback, this module includes built-in AF zoom, HDR, and advanced image correction for optimal performance in challenging environments.
Key Features
- Crisp 16MP full resolution video at 30FPS
- Smooth FHD 60FPS video recording
- AF zoom for flexible focusing
- HDR, defect correction, and digital stabilization
- Compatible with smart home devices, drones, and dashcams
Technical Specifications
| Model | XLS162043-V1.1 |
|---|---|
| Pixel Size | 1.0 μm × 1.0 μm |
| Optical Format | 1/3.1" |
| Resolution & Frame Rate | 4632×3480 30FPS, 4M (16:9) FHD 60FPS, 1.78M (16:9) HD 120FPS, WVGA 120FPS, VGA 120FPS |
| Interface | 4-lane MIPI |
| Field of View | 76° (optional) |
| Dimensions | 18.7 × 8.5 mm |
| Applications | Smart home, advertising display, barcode scanning, face recognition, video doorbell, drones, toy camera, dashcam, sports DV, mobile phones, tablets, handheld scanners |
| Supported Platforms | Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, Mstar, RK |
| Chip Height | 5.3 ± 0.2 mm |
| Base Size | 8.5 × 8.5 ± 0.2 mm |
| IR Filter | 650 nm |
| Shutter | Electronic rolling shutter and global reset |
| On-chip Features | CDS, defect correction, image scaling, digital video stabilization, Bayer downscaler, bad pixel correction, OTP memory, temperature sensor, test pattern generation |
| Power Supply | Analog 2.95V, VO 2.8V/1.8V, Digital 1.2V |
| Operating Temperature | -30°C to +70°C |
