IMX317 USB Camera Module 8MP 4K 30FPS Compact Design
商品の詳細:
| Place of Origin: | Shenzhen,China |
| ブランド名: | Sinoseen |
| 証明: | RoHS |
| Model Number: | SNS-DZ1009-V1.0 |
お支払配送条件:
| Minimum Order Quantity: | 3 |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
詳細情報 |
|||
| Type: | USB Camera Module | Sensor: | IMX317 1/2.5 inch |
|---|---|---|---|
| Resolution: | 8MP 3840*2160 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 82°(optional) |
| Interface: | USB | ||
| ハイライト: | IMX317 USB camera module 4K 30FPS,compact USB camera module 8MP,4K USB camera module with warranty |
||
製品の説明

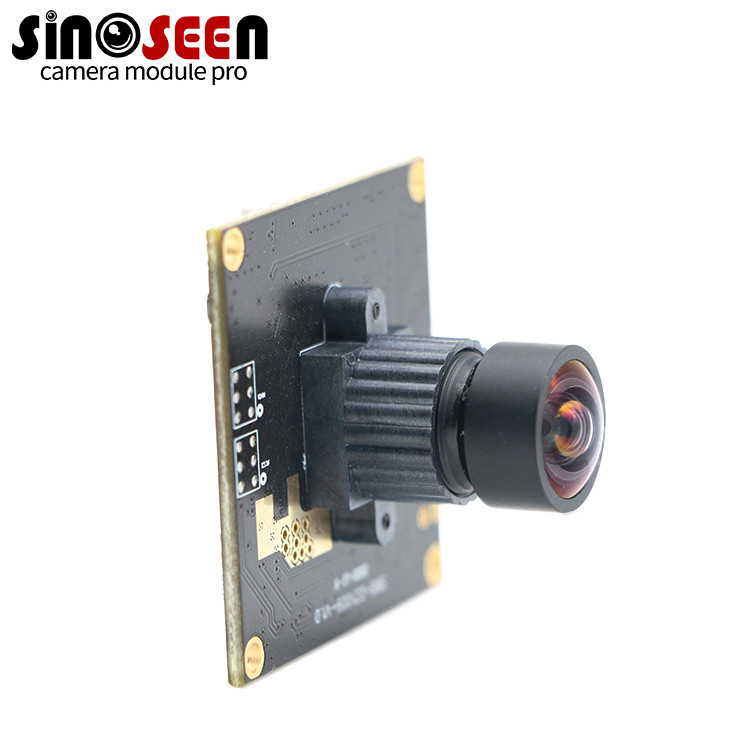

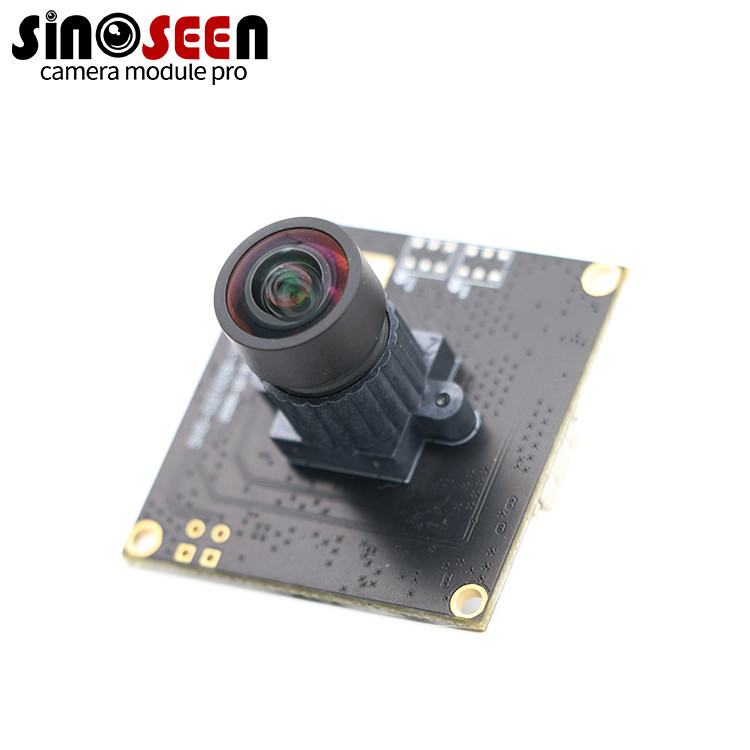

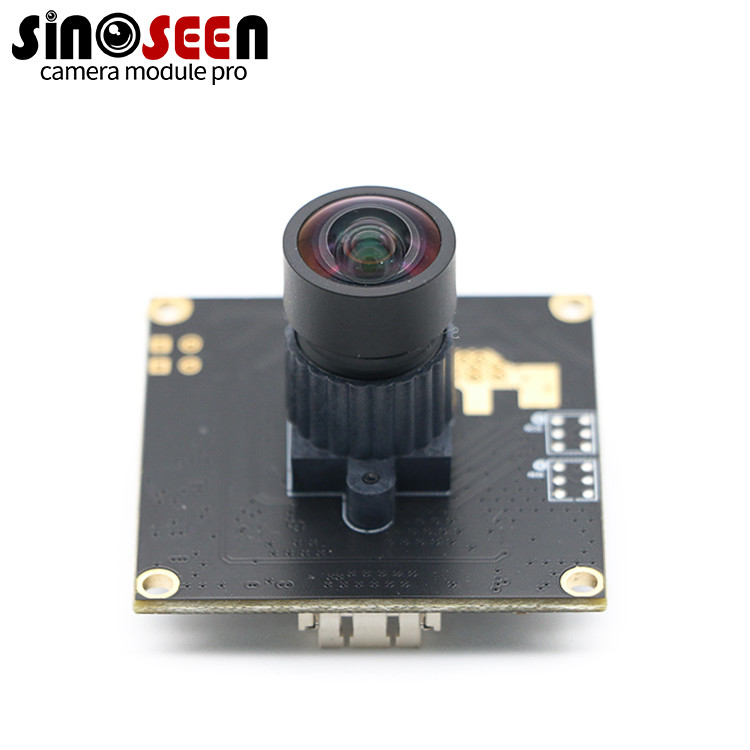

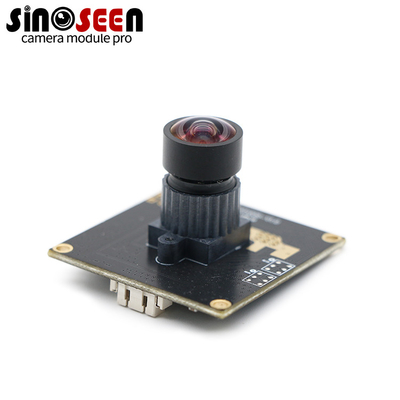

Compact IMX317 Camera Module with 4K Resolution
The Sinoseen SNS-DZ1009-V1.0 Camera Module delivers exceptional 3840 x 2160 4K resolution recording in a compact form factor, perfect for integration into space-constrained devices.
Key Features
- 8MP IMX317 CMOS sensor for superior image quality
- 4K resolution (3840 x 2160) at 30 frames per second
- Compact size for easy integration into various devices
- USB interface for plug-and-play functionality
- Fixed-focus design for simple, worry-free operation
- Wide compatibility with multiple operating systems
Product Attributes
| Type | USB Camera Module |
|---|---|
| Sensor | IMX317 1/2.5 inch |
| Resolution | 8MP 3840*2160 |
| Dimensions | Customizable |
| Frame Rate | 30FPS |
| Lens FOV | 82° (optional) |
| Interface | USB |
Detailed Specifications
| Module | SNS-DZ1009-V1.0 |
|---|---|
| Sensor | IMX317 CMOS |
| Image sensor size | 1/2.5 inch |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.62um*1.62um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | MJPG/YUV |
| Output formats | RAW Bayer 10bits |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Gallery
The SNS-DZ1009-V1.0 is ideal for digital cameras, dash cams, sports cameras, and industrial applications requiring high-definition visual feedback. Its compact size and powerful 4K performance make it perfect for capturing detailed images in space-constrained environments.
