IMX056 CMOS USB Camera Module 720P HD 30FPS Fixed Focus
商品の詳細:
| Place of Origin: | Shenzhen,China |
| ブランド名: | Sinoseen |
| 証明: | RoHS |
| Model Number: | SNS-DZ1134-V1.0 |
お支払配送条件:
| Minimum Order Quantity: | 3 |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
詳細情報 |
|||
| Type: | USB Camera Module | Sensor: | IMX056 1/5 inch |
|---|---|---|---|
| Resolution: | 1MP 1280*720 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 53° |
| Interface: | USB | ||
| ハイライト: | IMX056 USB camera module 720P,CMOS USB camera fixed focus,HD 30FPS USB camera module |
||
製品の説明

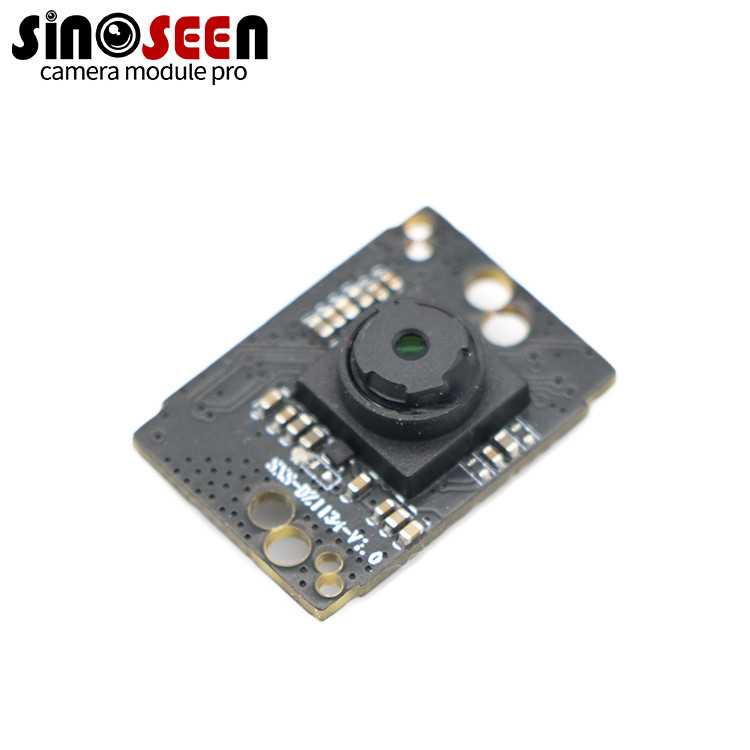

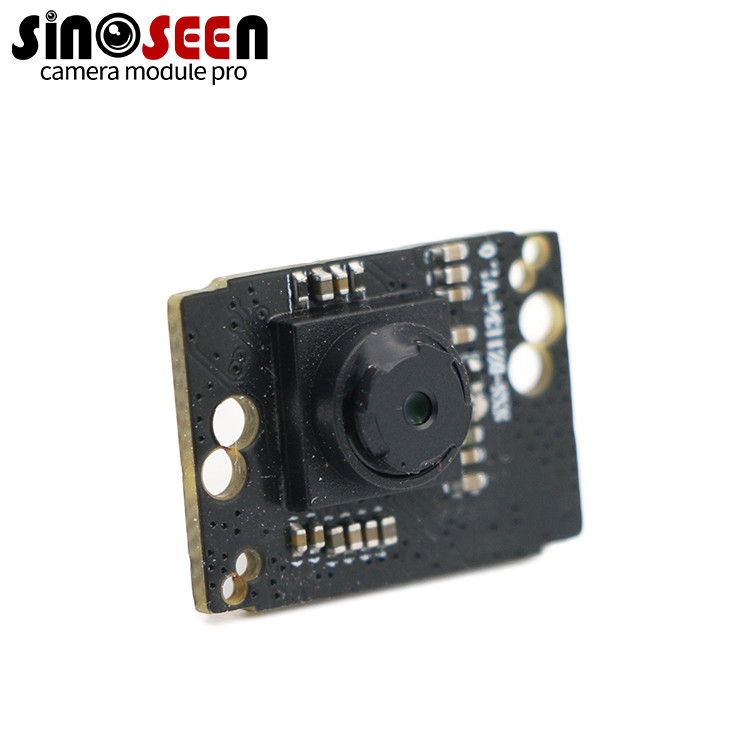

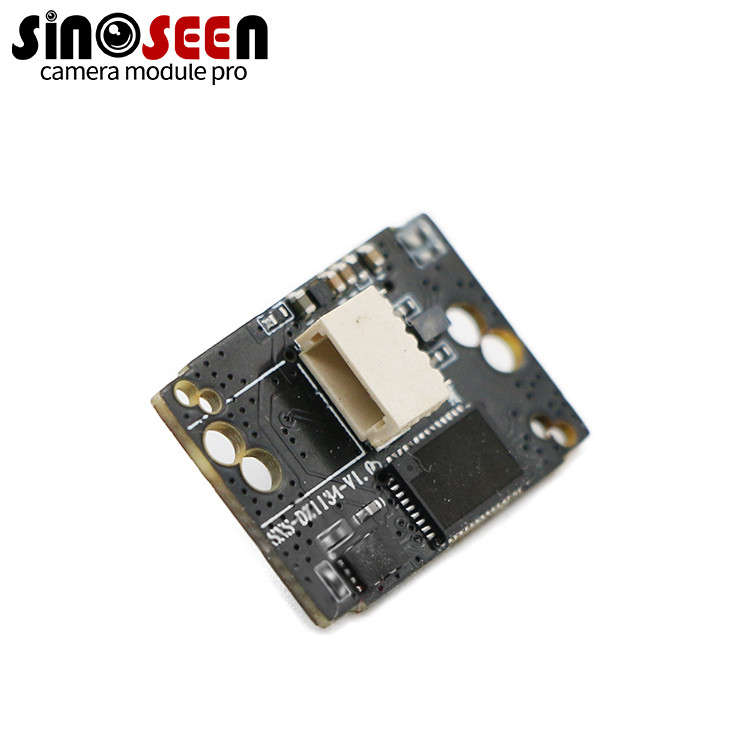

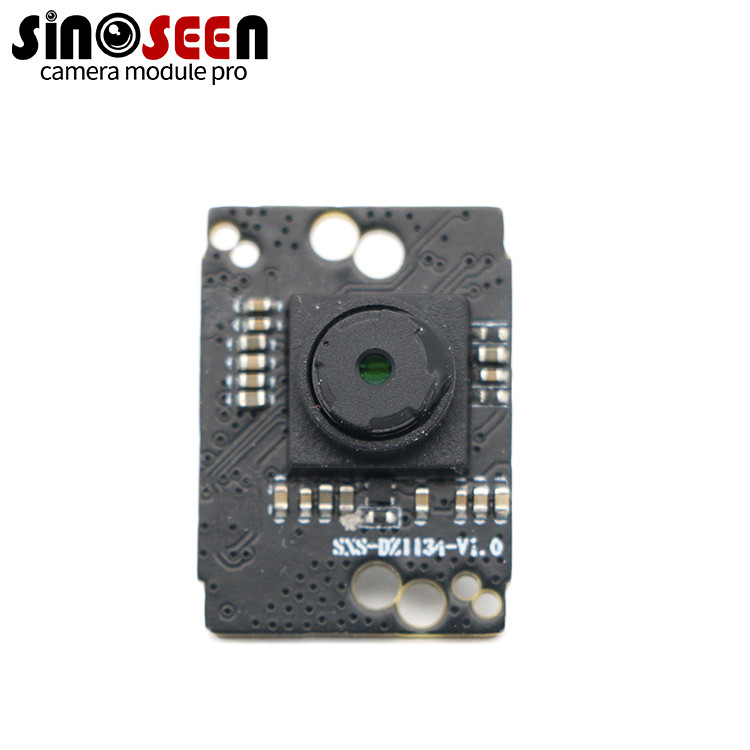

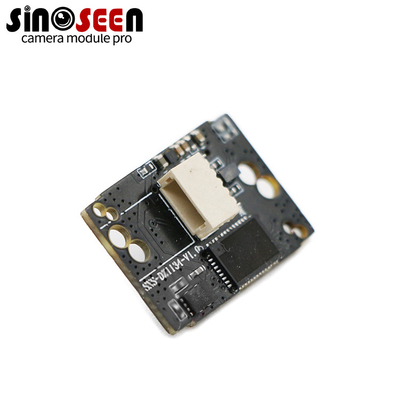

Sinoseen USB IMX056 CMOS Sensor Camera Module
Professional-grade USB camera module designed for security monitoring and video conferencing applications, featuring high-quality imaging and plug-and-play convenience.
Key Features
- IMX056 CMOS sensor delivers 1MP (1280×720) HD resolution
- Fixed-focus design eliminates manual adjustments
- 30FPS smooth video with USB2.0 interface
- Excellent low-light performance for clear imaging in dim conditions
- Wide compatibility with Windows, Linux, MacOS, and Android systems
Technical Specifications
| Module | SNS-DZ1134-V1.0 |
|---|---|
| Sensor Type | IMX056 CMOS (1/5 inch) |
| Resolution | 1280×720 (720P HD) |
| Pixel Size | 3.0μm × 3.0μm |
| Frame Rate | 30fps |
| Focus Type | Fixed focus |
| Interface | USB2.0 |
| Video Output | MJPG/YUV |
| Output Formats | RAW Bayer 10bits |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows XP through 10, Linux (kernel 2.6.26+), MacOS X 10.4.8+, Android 4.0+ |
Product Overview
The Sinoseen SNS-DZ1134-V1.0 Camera Module eliminates complex focusing operations with its fixed-focus design, delivering consistently clear 720P HD video and images. The IMX056 CMOS sensor provides exceptional low-light performance, ensuring quality imaging in various lighting conditions.
With USB2.0 interface supporting 30fps video capture, this module is ideal for security monitoring, video conferencing, and smartphone imaging applications. The plug-and-play design works across multiple operating systems for maximum versatility.
