詳細情報 |
|||
| タイプ：: | ラズベリーPIのカメラ モジュール | センサー：: | OV5647 |
|---|---|---|---|
| 解決：: | 1920*1080 | 寸法：: | 38mmx38mm（32mmx32mmと互換性があります） |
| ハイライト: | Stable Raspberry Pi Camera Module,Low-Light Raspberry Pi Camera Module,5MP HD Imaging Camera Module |
||
製品の説明

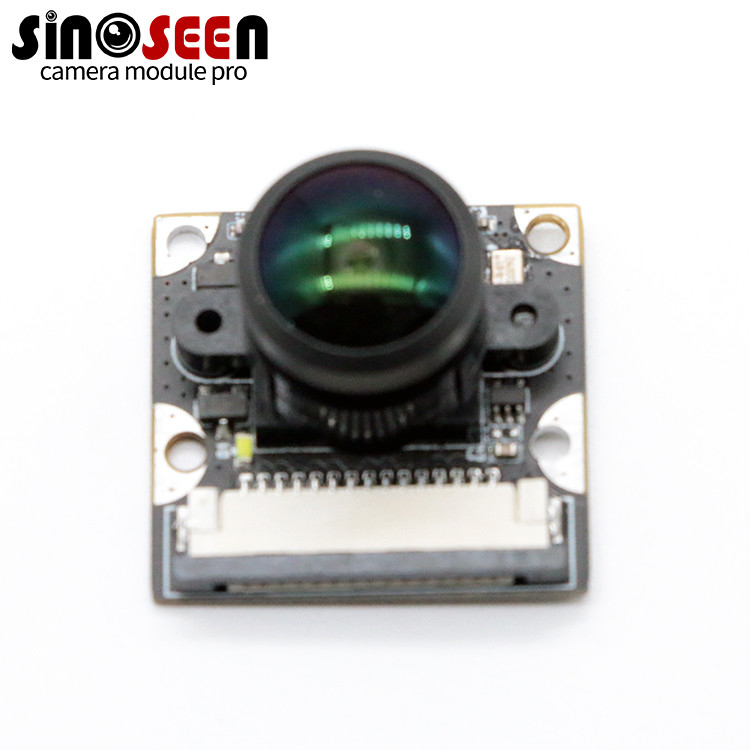

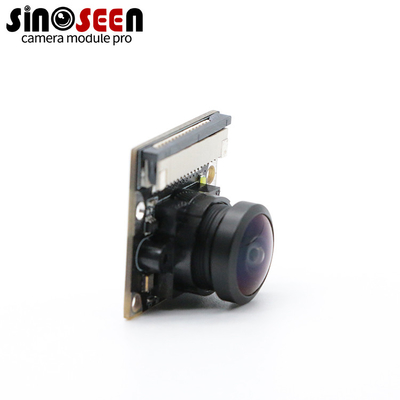

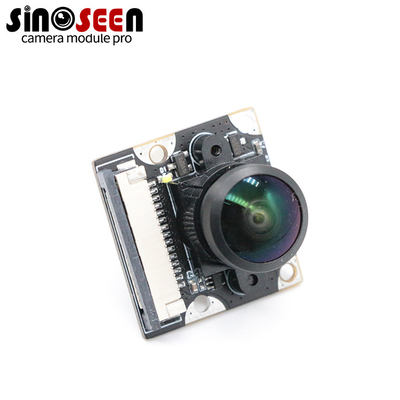

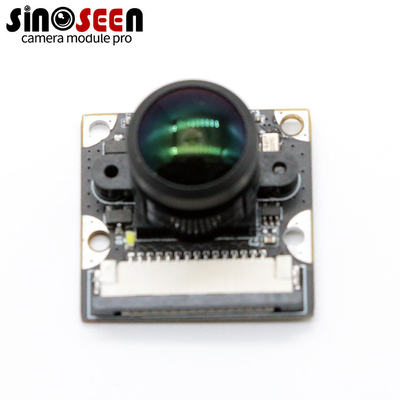

Raspberry Pi Camera Module OV5647 5MP HD 1080p
Product Specifications
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
Product Overview
The Raspberry Pi Camera Module with OV5647 sensor delivers 5MP HD imaging with advanced automatic control for stable performance in various lighting conditions. Designed specifically for Raspberry Pi systems, this module features OmniVision's OV5647 image sensor with 1.4-micron pixel OmniBSI™ technology for superior image quality.
Key Features
- Optimized for Raspberry Pi: Seamless compatibility and easy integration with Pi systems
- Advanced imaging technology: 1.4 micron pixel OmniBSI™ technology delivers high sensitivity and low noise performance
- Full HD resolution: Supports 1920×1080 output for crisp, detailed images
- Automatic image control: Includes AEC (Automatic Exposure Control), AGC (Automatic Gain Control), and AWB (Automatic White Balance)
- Programmable controls: Adjustable frame rate, lens correction, and defective pixel elimination
- Versatile output: Supports 8-/10-bit raw RGB output for both video and snapshot operation
- Compact design: 38mm×38mm form factor compatible with 32mm×32mm mounting
Applications
Ideal for digital camera applications, machine vision projects, surveillance systems, and any imaging solution requiring high-definition performance with excellent low-light capabilities.
